Pumping systems

Well heads & drilling equipment

EUFOR INTER has been working together with the German company BRECHTEL since the early 1990s, when it was still run by Dr. Brechtel himself.

Since then, the traditional company “Brechtel Brunnen- und Spezialtiefbau” has merged with B.H. Brunnen- und Horizontalbrunnenbau (a subsidiary of Preussag Spezialtiefbau) to form BHG Brechtel GmbH.
A hundred years of experience in the water drilling sector and related areas.

EUFOR INTER works in close partnership with BHG BRECHTEL for water drilling projects in Belgium, Western Europe and for exports.

In particular, EUFOR INTER provides delivery and on-site installation for prefabricated BRECHTEL DBP frames, as an alternative to conventional or buried structures (prefabricated concrete).

Brechtel® frames are prefitted in the workshop with a fixed (electric) component and a mobile (hydraulic) component. Opening mechanism on galvanised rails/slides and lockable closing mechanism (patented by Brechtel® for operation by a single person!).
The structure is made from a green-coloured RAL6011 glass-fibre reinforced polyester (colour stability guaranteed min. 10 years).
Dimensions and technical details can be found in the data sheets.

Brechtel well heads are designed to satisfy every operational and ergonomic requirement: high accessibility, hygienically impeccable and reduced maintenance.
Our installations are certified for any water protection zones and additional measures are possible for zones at risk of flooding.
Brechtel frames are equipped in the workshop and tailored to customer requirements.

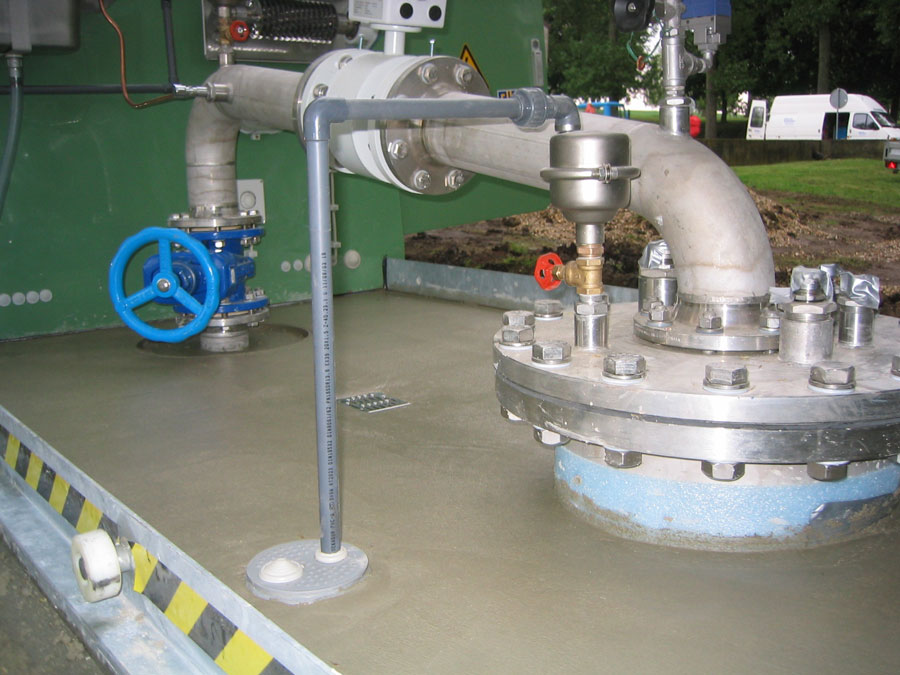

The stainless-steel pressure piping, including the well cover, its accessories, and the shell (large diameter tubing) that provides an interface between the wells (production wells) and the subterranean distribution network, is drawn up by our design and engineering office, approved by the customer, then manufactured in our industrial boilermaking workshop.
Workshop certified according to ISO 9001 and PED 2014/68 on pressurised equipment.
Calculations performed in compliance with the EN 13445 standard and the CODAP and ASME VIII building codes.

The equipment is delivered on-site, installed and commissioned by our team of specialist assemblers.
Our assemblers are versatile – they can perform levelling, foundations, pipe-laying and welding, as well as electrical hook-ups and commissioning for submersible motor pump units (MPUs), valving and instrumentation.
